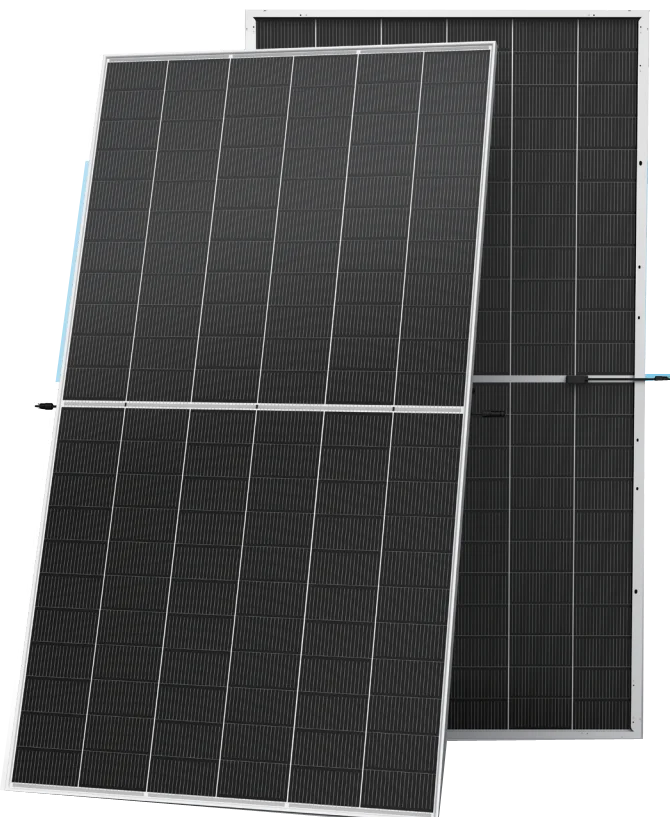

Trina Solar Panels TSM-NEG21C.20 Bificial Dual Glass PV Module 685W 690W 695W 700W 705W 710W Solar Panels

  • Trina Solar Panels TSM-NEG21C.20 Bificial Dual Glass PV Module 685W 690W 695W 700W 705W 710W Solar Panels
  • Trina Solar Panels TSM-NEG21C.20 Bificial Dual Glass PV Module 685W 690W 695W 700W 705W 710W Solar Panels
  • Trina Solar Panels TSM-NEG21C.20 Bificial Dual Glass PV Module 685W 690W 695W 700W 705W 710W Solar Panels
  • Trina Solar Panels TSM-NEG21C.20 Bificial Dual Glass PV Module 685W 690W 695W 700W 705W 710W Solar Panels
  • video
Trina Solar Panels TSM-NEG21C.20 Bificial Dual Glass PV Module 685W 690W 695W 700W 705W 710W Solar Panels
  • Trina
  • China
  • 7days
  • more than 10000pcs/month

Half Cut Technology

Under the same shadow condition, power loss of half-cell solar panel is less than that of full cell solar panel.

Multi Busbar Technology

MBB technology improves efficiency of modules, offers a better aesthetic appearance.


  • Trina Bifacial Solar Panel


Products Description
Trina Solar Panel
High customer Value
-Standardized module size with fagship module power, 35W highercompared with conventional technology
-Low voltage design with higher string power,effectively reducing BOs(Balance of System)and LCOE (Levelized Cost of Energy)by2%~6%
-Higher container space utilization effectively reduces the freight cost
-Certified Low-Carbon Footprint
-The Star of LCOE
High power up to 720W
-Up to 23.2% module efficiency,on 210innovation platform
-Patented i-TOPCon technology with continuous efficiency improvementincluding contact resistance reduction,rear reflection enhancementand edge quality repairment
Bifacial Solar Panels
High reliability -Minimized micro-cracks with innovative non-destructive cuttingtechnology and high-density packaging
-Reduced risks of hot-spotwith half-cut technology
-Certified high resistance aqainst salt, ammonia, sand, PlD, LiD, LeTlD
-Sustainable in harsh environments and extreme weather conditions
High energy yield
-Excellent low irradiation performance, validated by 3rd partyLower temperature coefficient(-0.29%/°C)Higher bifaciality, with up to 10%~20% additional power gain fromback side depending on albedo
Reliable dual-glass structure with 30-year power guarantee


Trina Solar Vertex N Type Tsm-neg21c.20 Bifacial Dual Glass Best Price Maxmium Power Output 710w


  • Paremeter

Trina Solar Panel

Module Type
NEG21C.20_690
NEG21C.20_695
NEG21C.20_700
NEG21C.20_705
NEG21C.20_710
Maximum Power (Pmax)
690Wp
695Wp
700Wp
705Wp
710Wp
Maximum Power Voltage (Vmp)
40.1V
40.3V
40.5V
40.7V
40.9V
Maximum Power Current (Imp)
17.23A
17.25A
17.29A
17.33A
17.36A
Open-circuit Voltage (Voc)
47.9V
48.3V
48.6V
48.8V
49.0V
Short-circuit Current (Isc)
18.25A
18.28A
18.32A
18.36A
18.40A
Module Efficiency STC (%)
22.2%
22.4%
22.5%
22.7%
22.9%
Operating Temperature(ȭ)
-40℃~+85℃
Maximum system voltage
DC1500V (IEC/UL)
Maximum series fuse rating
25A
Power tolerance
0~+3%
Temperature coefficients of Pmax
-0.34%/℃
Temperature coefficients of Voc
-0.25%/℃
Temperature coefficients of Isc
0.04%/℃
Nominal operating cell temperature (NOCT)
43±2℃
Bifacial Solar Panels
Half Cut Technology Under the same shadow condition, power loss of half-cell solar panel is less than that of full cell solar panel. Multi Busbar TechnologyMBB technology improves efficiency of modules, offers a better aesthetic appearance. PERC TechnologyThe PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
Trina Solar Vertex N Type Tsm-neg21c.20 Bifacial Dual Glass Best Price Maxmium Power Output 710w
Trina Solar Panel
100% Cells Sorting
Ensure Color and Power Difference.
Ensure high yields,consistent performance and durability.
100% EL Testing
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final Inspection, Continuous line monitoring and video/photo record for each cell and
panel.
Bifacial Solar Panels
Trina Solar Vertex N Type Tsm-neg21c.20 Bifacial Dual Glass Best Price Maxmium Power Output 710w
100% module Inspection
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
Trina Solar Panel
Bifacial Solar Panels


CE certificate
CE certificate
TUV
TUV
