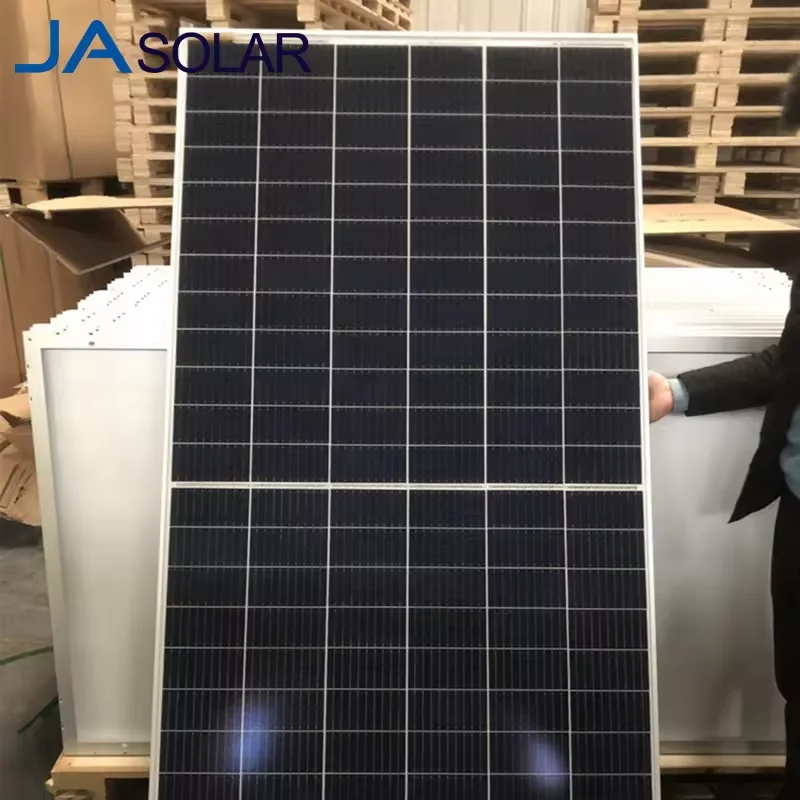

New JA 700W Solar Panel JAM66D46 LB Double Glass Bifacial Monocrystalline Silicon Half Cell Panels for Sales
New JA 700W Solar Panel JAM66D46 LB Double Glass Bifacial Monocrystalline Silicon Half Cell Panels for Sales
- JA
- China
- 7days
- high

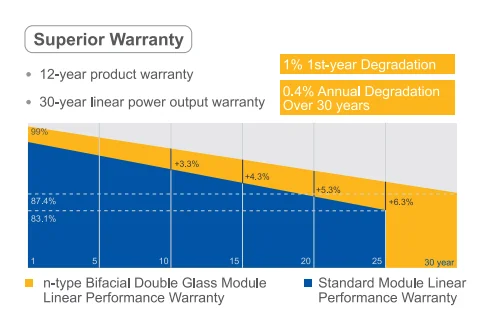

JA Solar produce high-performance solar panels for residential, commercial, and utility-scale projects. JA Solar made the SolarReviews Best Solar Manufacturers list of 2023. JA Solar offers many residential solar panel options with high-efficiency ratings ranging from 20%-21%. JA Solar panels are half-cut cell panels, a technology that increases their energy output. They also utilize PERC technology. JA Solar offers a competitive warranty and has great customer reviews to uphold their reputation
Product Description

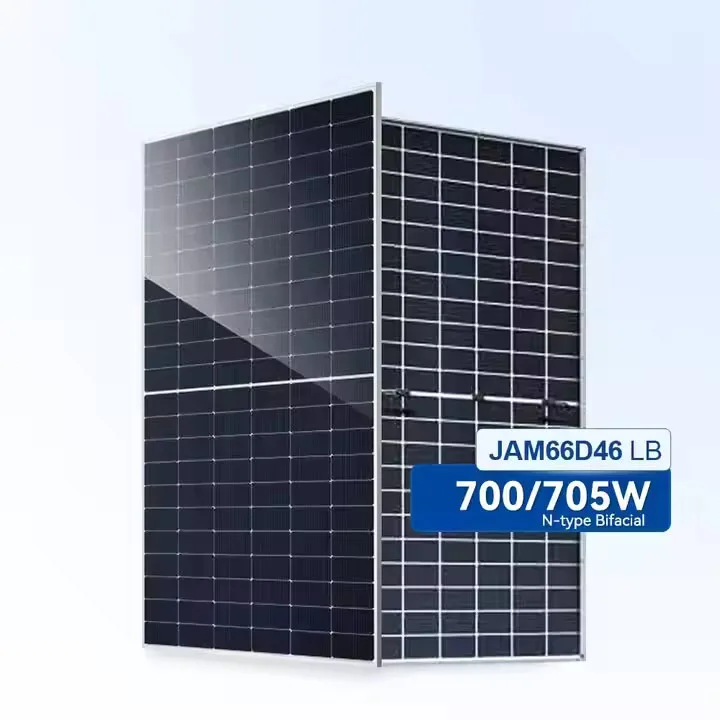

JA SOLARJAM66D46 LB 690-715Watt
DOUBLE GLASS BIFACIAL MODULEN-type
Premium Modules
*Higher power generation better LCOE*N-type with very Lower LID*Better Temperature Coefficient*Better low irradiance response
Specification
ELECTRICAL PARAMETERS
Type
JAM66D46-690/LB
JAM66D46-695/LB
JAM66D46-700/LB
JAM66D46-705/LB
JAM66D46-710/LB
JAM66D46-715/LB
STC
STC
STC
STC
STC
STC
Rated Maximum Power(Pmax) [W]
690
695
700
705
710
715
Open Circuit Voltage(Voc) [V]
47.80
48.00
48.20
48.40
48.60
48.80
Maximum Power Voltage(Vmp) [V]
40.02
40.22
40.42
40.61
40.80
41.00
Short Circuit Current(lsc) [A]
18.35
18.39
18.43
18.47
18.51
18.55
Maximum Power Current(lmp) (A]
17.24
17.28
17.32
17.36
17.40
17.44
Module Efficiency [%]
22.2
22.4
22.5
22.7
22.9
23.0
Power Tolerance 0~+5W
Cell Type
N-type Mono-crystalline
No.of Cells
132
Dimensions
2384*1303*30mm
Weight
40kg
Junction Box
IP68, 3diodes
Project Case
Packing & Delivery
Certificate
CE certificate
TUV
